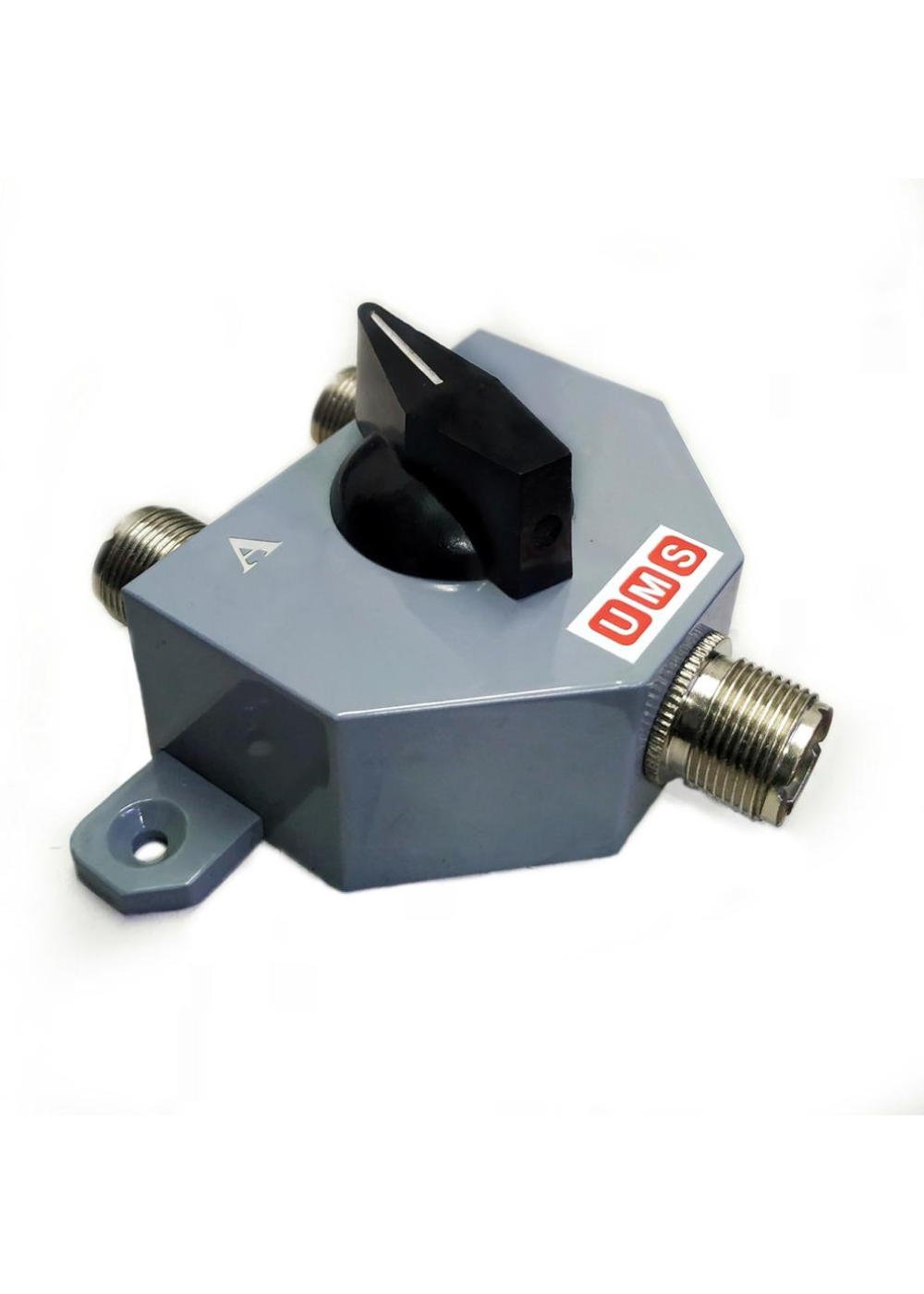

The UMS GOLF 2A Antenna Selector Switch enables seamless switching between antennas with low loss, high power handling, and excellent signal isolation.
| UMS GOLF 2A ANTENNA SELECTOR SWITCH | |||
|---|---|---|---|
| Frequency | VSWR | dB Loss | dB Isolation |
| 30MHz | <1.1:1 | 0.1dB | >60dB |
| 150MHz | <1.3:1 | 0.15dB | >50dB |
| 450MHz | <1.4:1 | 0.5dB | 50dB |
Power Rating: 1.5kW PEP/CW ICAS duty cycle
Impedance: 50 Ohms
Connectors: Factory machined brass SO239
Length: 85mm
Width: 95mm
Height: 28mm
The UMS GOLF 2A Antenna Selector Switch enables seamless switching between antennas with low loss, high power handling, and excellent signal isolation.
| UMS GOLF 2A ANTENNA SELECTOR SWITCH | |||
|---|---|---|---|
| Frequency | VSWR | dB Loss | dB Isolation |
| 30MHz | <1.1:1 | 0.1dB | >60dB |
| 150MHz | <1.3:1 | 0.15dB | >50dB |
| 450MHz | <1.4:1 | 0.5dB | 50dB |
Power Rating: 1.5kW PEP/CW ICAS duty cycle
Impedance: 50 Ohms
Connectors: Factory machined brass SO239
Length: 85mm
Width: 95mm
Height: 28mm
NOTE : TAXES AND FREIGHT CHARGES EXTRA AT ACTUALS
The UMS GOLF 2A Antenna Selector Switch enables seamless switching between antennas with low loss, high power handling, and excellent signal isolation.
| UMS GOLF 2A ANTENNA SELECTOR SWITCH | |||
|---|---|---|---|
| Frequency | VSWR | dB Loss | dB Isolation |
| 30MHz | <1.1:1 | 0.1dB | >60dB |
| 150MHz | <1.3:1 | 0.15dB | >50dB |
| 450MHz | <1.4:1 | 0.5dB | 50dB |
Power Rating: 1.5kW PEP/CW ICAS duty cycle
Impedance: 50 Ohms
Connectors: Factory machined brass SO239
Length: 85mm
Width: 95mm
Height: 28mm
€26
NOTE : TAXES AND FREIGHT CHARGES EXTRA AT ACTUALS
€26
€26
Effortlessly switch between multiple antennas, like an inverted 'V' and a beam antenna. Machined from a solid block of 6063-grade aluminum for durability. Features a microstrip switching system for seamless operation. Includes three SO239 brass sockets, PTFE insulation, and precision-tempered brass contacts. Offers 1.5KW SSB/CW output, low-loss 50-ohm impedance, and >60dB co-channel rejection. Operates efficiently up to 500 MHz.
Effortlessly switch between multiple antennas, like an inverted 'V' and a beam antenna. Machined from a solid block of 6063-grade aluminum for durability. Features a microstrip switching system for seamless operation. Includes three SO239 brass sockets, PTFE insulation, and precision-tempered brass contacts. Offers 1.5KW SSB/CW output, low-loss 50-ohm impedance, and >60dB co-channel rejection. Operates efficiently up to 500 MHz.
Effortlessly switch between multiple antennas, like an inverted 'V' and a beam antenna. Machined from a solid block of 6063-grade aluminum for durability. Features a microstrip switching system for seamless operation. Includes three SO239 brass sockets, PTFE insulation, and precision-tempered brass contacts. Offers 1.5KW SSB/CW output, low-loss 50-ohm impedance, and >60dB co-channel rejection. Operates efficiently up to 500 MHz.
